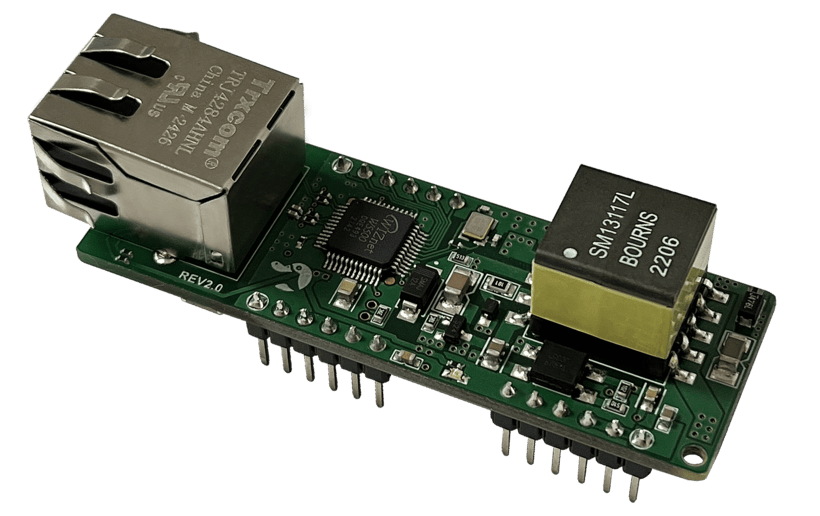

SPI + PoE in One Reliable Board: Introducing the PP-W5500-POE
If you’re building an embedded system that needs Ethernet connectivity and clean, dependable power delivery, the PP-W5500-POE is a compact board that’s surprisingly capable. What stood out to me is how developer-friendly it is—especially the way it handles Ethernet and PoE with a focus on reliability rather than cost-cutting.

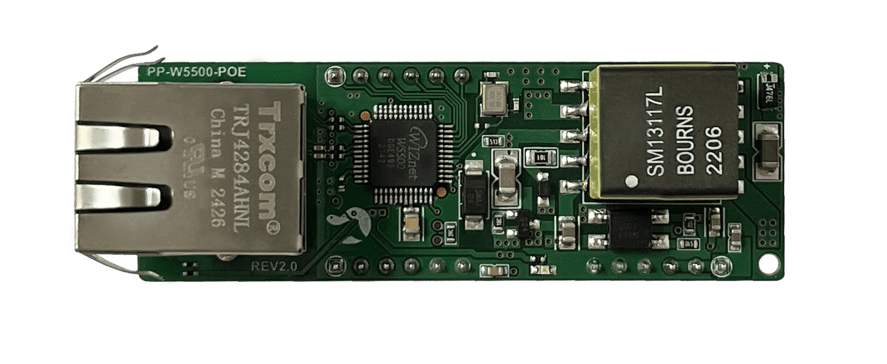

W5500 Inside — Ethernet Done with Just SPI
At the core of the board is the WIZnet W5500, a hardware TCP/IP Ethernet controller.
For MCU-based projects, this means something very simple:
Connect SPI, and your Ethernet stack is basically solved.
No heavy libraries, no complex TCP/IP porting, no large memory footprint.
The W5500 handles TCP/UDP/ICMP in hardware and offers eight independent sockets, making it ideal even for small MCUs. It keeps firmware light and stable while giving you full Ethernet capability out of the box.

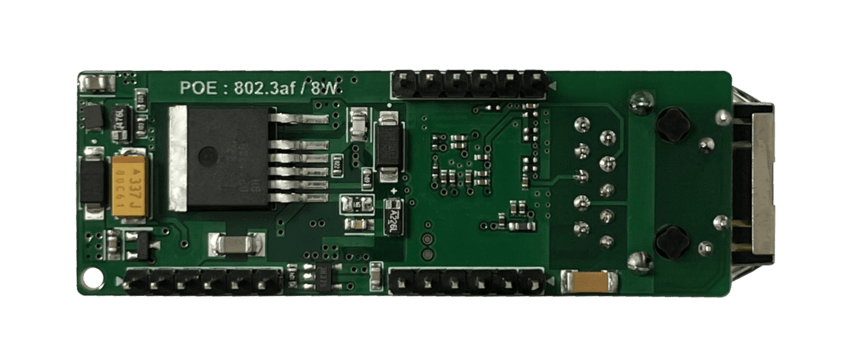

A PoE Design You Can Trust (Not Built with Cheap Parts)
Many low-cost PoE boards cut corners with inexpensive components, which usually shows up later as noise, heat issues, or poor stability.
The PP-W5500-POE takes the opposite approach:
It’s built with solid, high-quality PoE components designed for long-term reliability.
What makes the PoE stage stand out:
- Fully IEEE802.3af compliant
- Supports both Mode A (Endspan) and Mode B (Midspan)
- Wide input range: 40–60 VDC
- OV (over-voltage) and OC (over-current) protection
- Efficient and stable DC/DC conversion
- Designed for industrial-level durability
This isn’t a “just enough to work” PoE implementation—it’s designed to be safe, protected, and stable in real-world environments.
Pinout Overview (Simple and Practical for MCU Use)

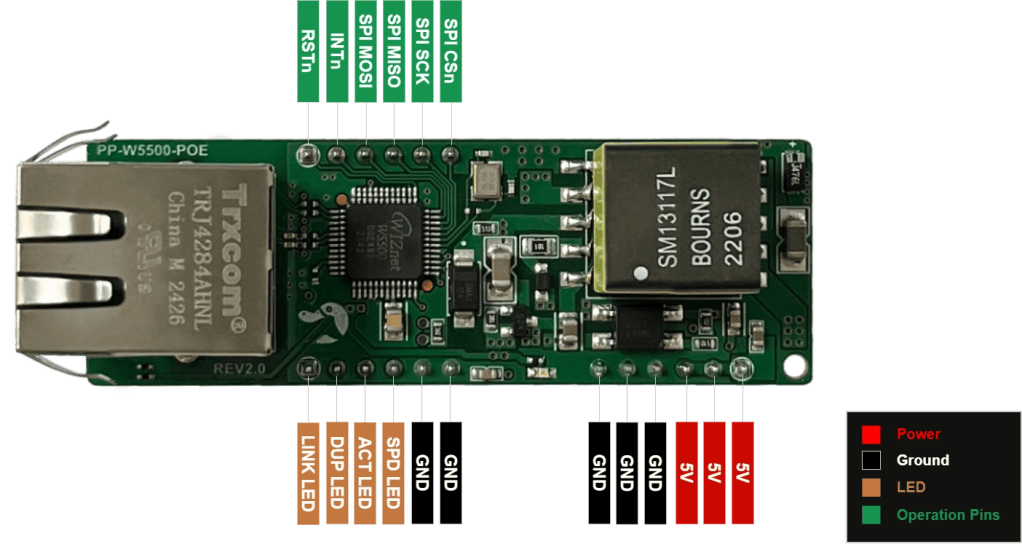

To make integration easier, the PP-W5500-POE offers a clean and straightforward pinout layout.
It exposes the essential signals you need for both Ethernet control (via W5500) and power output generated from PoE.
Here’s a quick overview:
W5500 SPI Interface
These pins allow your MCU to communicate with the W5500 Ethernet controller.
- SCK – SPI Clock
- MOSI – Master Out Slave In
- MISO – Master In Slave Out
- CS (Chip Select) – Selects the W5500
- INT – W5500 interrupt output (network events, socket events)
- RST – Hardware reset input
These form a complete, minimal set of signals required to operate W5500 with just SPI + Reset + an optional interrupt for efficient handling.
Where It Fits Well
- Compact IoT devices
- Remote monitoring and sensor nodes
- Wall-mounted or hard-to-power installations
- Low-power MCUs that need Ethernet
- Any project where Ethernet + power via one cable is a big advantage
Its combination of “SPI-only Ethernet” and “robust PoE” makes it a very practical choice for both hobby projects and professional deployments.
Final Thoughts
If you want a board that keeps your design simple while giving you reliable Ethernet and PoE, the PP-W5500-POE is definitely worth considering. It avoids the usual pitfalls of cheap PoE boards and gives you a stable, protected foundation for networked embedded devices.
Add-on Closing Section (English)
For more detailed specifications, schematics, and documentation,
please refer to the official product page below:
More information:
https://www.us-platypus.com/?idx=45
You can find complete technical details, additional photos, and updated product information on the website.
